Your environment has already been seeded with 5 f5-newman-wrapper
files, these
files will execute against the collections noted in the previous lab. This lab
will cover the Build aspect, creating a Virtual Server Framework containing all
the pieces required for this demo service.
Note
This is a Postman Collection, and can also be imported into the Postman GUI client for viewing

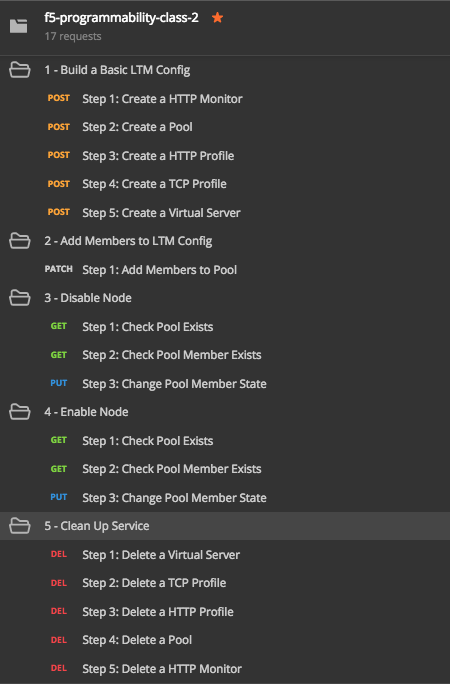

For a visual reference of what f5-programmability-class-2.postman_collection.json looks like:
Note
You do not need to have all these operations individually broken out, it is shown this way to educate that Workflows can be as small (update a pool member) or as large (deploy a whole service) as needed
Note
The contents of this folder contain files for this lab, and upcoming labs in this class
Navigate to the location containing the f5-newman-wrapper files cd ~/f5-automation-labs/jenkins/f5-newman-build
Let’s examine the contents of the first f5-newman-wrapper file cat f5-newman-build-1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 | {
"name":"f5-newman-build-1",
"description":"Execute a chained workflow that authenticates to a BIG-IP and builds configuration",
"globalEnvVars":"/home/snops/f5-postman-workflows/framework/f5-postman-workflows.postman_globals.json",
"globalOptions": {
"insecure":true,
"reporters":["cli"]
},
"globalVars": {
"bigip_mgmt": "10.1.1.4",
"bigip_username":"admin",
"bigip_password":"admin",
"bigip_partition":"Common",
"bigip_pool_name":"module_3_pool",
"bigip_pool_member":"75.67.228.133:80",
"bigip_object_state":"user-up",
"bigip_object_session":"user-enabled",
"bigip_vs_name":"module_3_vs",
"bigip_vs_destination":"10.1.20.129:80",
"bigip_node_name":"75.67.228.133",
"bigip_http_monitor":"module_3_http_monitor",
"bigip_http_profile":"module_3_http",
"bigip_tcp_profile":"module_3_tcp_clientside"
},
"workflow": [
{
"name":"Authenticate to BIG-IP",
"options": {
"collection":"/home/snops/f5-postman-workflows/collections/BIG_IP/BIGIP_API_Authentication.postman_collection.json",
"folder":"1_Authenticate"
}
}, (REMOVE THIS TEXT AND ADD YOUR CODE BELOW)
}
]
}
|
#. The above f5-newman-wrapper file only has the Authenticate to BIG-IP
Collection/Folder referenced, we will need to add in another collection.
You are going to add this code snippet after the last },
. This shows the method for chaining together multiple calls from multiple sources, shown in a previous lab.
For editing files VIM/VI is installed on the container, if you do not know how to use VIM/VI please let the instructor know.
1 2 3 4 5 6 7 { "name":"1 - Build a Basic LTM Config", "skip":false, "options": { "collection":"/home/snops/f5-automation-labs/postman_collections/f5-programmability-class-2.postman_collection.json", "folder":"1 - Build a Basic LTM Config" }
cat f5-newman-build-1
. The environment variables will float into both Collections, and the returned Global Variables will persist during the whole run.Example of a complete file:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 | {
"name":"f5-newman-build-1",
"description":"Execute a chained workflow that authenticates to a BIG-IP and builds configuration",
"globalEnvVars":"/home/snops/f5-postman-workflows/framework/f5-postman-workflows.postman_globals.json",
"globalOptions": {
"insecure":true,
"reporters":["cli"]
},
"globalVars": {
"bigip_mgmt": "10.1.1.4",
"bigip_username":"admin",
"bigip_password":"admin",
"bigip_partition":"Common",
"bigip_pool_name":"module_3_pool",
"bigip_pool_member":"75.67.228.133:80",
"bigip_object_state":"user-up",
"bigip_object_session":"user-enabled",
"bigip_vs_name":"module_3_vs",
"bigip_vs_destination":"10.1.20.129:80",
"bigip_node_name":"75.67.228.133",
"bigip_http_monitor":"module_3_http_monitor",
"bigip_http_profile":"module_3_http",
"bigip_tcp_profile":"module_3_tcp_clientside"
},
"workflow": [
{
"name":"Authenticate to BIG-IP",
"options": {
"collection":"/home/snops/f5-postman-workflows/collections/BIG_IP/BIGIP_API_Authentication.postman_collection.json",
"folder":"1_Authenticate"
}
},
{
"name":"1 - Build a Basic LTM Config",
"skip":false,
"options": {
"collection":"/home/snops/f5-automation-labs/postman_collections/f5-programmability-class-2.postman_collection.json",
"folder":"1 - Build a Basic LTM Config"
}
}
]
}
|
Login to your BIG-IP lab machine and verify you do not have any Virtual Servers or Pools
Note
If you are using the F5 lab systems there are already shortcuts in your Chrome browser called BIG-IP A GUI
, if you receive a certificate warning accept and add exception (the BIG-IP has a self-signed cert which violates Chrome’s security). BIG-IP A Login credentials are admin\admin
f5-newman-build-1
now contains the needed calls to build the Framework of an Application Service (Virtual Server, Pool and needed Profiles), it doesn’t however include any pool members.
Execute: f5-newman-wrapper f5-newman-build-1
Output should look like:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 | $ f5-newman-wrapper f5-newman-build-1
[f5-newman-build-1-2017-07-26-08-23-00] starting run
[f5-newman-build-1-2017-07-26-08-23-00] [runCollection][Authenticate to BIG-IP] running...
newman
BIGIP_API_Authentication
❏ 1_Authenticate
↳ Authenticate and Obtain Token
POST https://10.1.1.4/mgmt/shared/authn/login [200 OK, 1.41KB, 505ms]
✓ [POST Response Code]=200
✓ [Populate Variable] bigip_token=MB4YMPICV3XEZ3B47LJRQKGHTJ
↳ Verify Authentication Works
GET https://10.1.1.4/mgmt/shared/authz/tokens/MB4YMPICV3XEZ3B47LJRQKGHTJ [200 OK, 1.23KB, 17ms]
✓ [GET Response Code]=200
✓ [Current Value] token=MB4YMPICV3XEZ3B47LJRQKGHTJ
✓ [Check Value] token == MB4YMPICV3XEZ3B47LJRQKGHTJ
↳ Set Authentication Token Timeout
PATCH https://10.1.1.4/mgmt/shared/authz/tokens/MB4YMPICV3XEZ3B47LJRQKGHTJ [ 200 OK, 1.23KB, 50ms]
✓ [PATCH Response Code]=200
✓ [Current Value] timeout=1200
✓ [Check Value] timeout == 1200
┌─────────────────────────┬──────────┬──────────┐
│ │ executed │ failed │
├─────────────────────────┼──────────┼──────────┤
│ iterations │ 1 │ 0 │
├─────────────────────────┼──────────┼──────────┤
│ requests │ 3 │ 0 │
├─────────────────────────┼──────────┼──────────┤
│ test-scripts │ 3 │ 0 │
├─────────────────────────┼──────────┼──────────┤
│ prerequest-scripts │ 1 │ 0 │
├─────────────────────────┼──────────┼──────────┤
│ assertions │ 8 │ 0 │
├─────────────────────────┴──────────┴──────────┤
│ total run duration: 1197ms │
├───────────────────────────────────────────────┤
│ total data received: 1.71KB (approx) │
├───────────────────────────────────────────────┤
│ average response time: 190ms │
└───────────────────────────────────────────────┘
[f5-newman-build-1-2017-07-26-08-23-00] [runCollection][1 - Build a Basic LTM Config] running...
newman
f5-programmability-class-2
❏ 1 - Build a Basic LTM Config
↳ Step 1: Create a HTTP Monitor
POST https://10.1.1.4/mgmt/tm/ltm/monitor/http [200 OK, 1.32KB, 625ms]
↳ Step 2: Create a Pool
POST https://10.1.1.4/mgmt/tm/ltm/pool [200 OK, 1.56KB, 157ms]
↳ Step 3: Create a HTTP Profile
POST https://10.1.1.4/mgmt/tm/ltm/profile/http [200 OK, 1.96KB, 183ms]
↳ Step 4: Create a TCP Profile
POST https://10.1.1.4/mgmt/tm/ltm/profile/tcp [200 OK, 2.68KB, 64ms]
↳ Step 5: Create a Virtual Server
POST https://10.1.1.4/mgmt/tm/ltm/virtual [200 OK, 1.9KB, 230ms]
┌─────────────────────────┬──────────┬──────────┐
│ │ executed │ failed │
├─────────────────────────┼──────────┼──────────┤
│ iterations │ 1 │ 0 │
├─────────────────────────┼──────────┼──────────┤
│ requests │ 5 │ 0 │
├─────────────────────────┼──────────┼──────────┤
│ test-scripts │ 0 │ 0 │
├─────────────────────────┼──────────┼──────────┤
│ prerequest-scripts │ 0 │ 0 │
├─────────────────────────┼──────────┼──────────┤
│ assertions │ 0 │ 0 │
├─────────────────────────┴──────────┴──────────┤
│ total run duration: 1406ms │
├───────────────────────────────────────────────┤
│ total data received: 5.79KB (approx) │
├───────────────────────────────────────────────┤
│ average response time: 251ms │
└───────────────────────────────────────────────┘
[f5-newman-build-1-2017-07-26-08-23-00] run completed in 6s, 90.207 ms
|
Note
Notice the 200 OK responses, the number of requests etc., we’re building in testing and logging, look back at BIGIP-A
for the newly created Application Service Framework
On BIG-IP A, examine Virtual Server module_3_vs
:
On BIG-IP A, examine Pool module_3_pool
:
f5-newman-build-2
contains calls to add pool members to the Application Service Framework created above; this is done independently of the build, to show Service staging as a possible use case.
Execute: f5-newman-wrapper f5-newman-build-2
Output should look like:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 | $ f5-newman-wrapper f5-newman-build-2
[f5-newman-build-2-2017-07-26-08-40-52] starting run
[f5-newman-build-2-2017-07-26-08-40-52] [runCollection][Authenticate to BIG-IP] running...
newman
BIGIP_API_Authentication
❏ 1_Authenticate
↳ Authenticate and Obtain Token
POST https://10.1.1.4/mgmt/shared/authn/login [200 OK, 1.41KB, 272ms]
✓ [POST Response Code]=200
✓ [Populate Variable] bigip_token=WSNAXWTCWNZGJG7MDBVF6CRXTB
↳ Verify Authentication Works
GET https://10.1.1.4/mgmt/shared/authz/tokens/WSNAXWTCWNZGJG7MDBVF6CRXTB [200 OK, 1.23KB, 15ms]
✓ [GET Response Code]=200
✓ [Current Value] token=WSNAXWTCWNZGJG7MDBVF6CRXTB
✓ [Check Value] token == WSNAXWTCWNZGJG7MDBVF6CRXTB
↳ Set Authentication Token Timeout
PATCH https://10.1.1.4/mgmt/shared/authz/tokens/WSNAXWTCWNZGJG7MDBVF6CRXTB [200 OK, 1.23KB, 61ms]
✓ [PATCH Response Code]=200
✓ [Current Value] timeout=1200
✓ [Check Value] timeout == 1200
┌─────────────────────────┬──────────┬──────────┐
│ │ executed │ failed │
├─────────────────────────┼──────────┼──────────┤
│ iterations │ 1 │ 0 │
├─────────────────────────┼──────────┼──────────┤
│ requests │ 3 │ 0 │
├─────────────────────────┼──────────┼──────────┤
│ test-scripts │ 3 │ 0 │
├─────────────────────────┼──────────┼──────────┤
│ prerequest-scripts │ 1 │ 0 │
├─────────────────────────┼──────────┼──────────┤
│ assertions │ 8 │ 0 │
├─────────────────────────┴──────────┴──────────┤
│ total run duration: 1034ms │
├───────────────────────────────────────────────┤
│ total data received: 1.71KB (approx) │
├───────────────────────────────────────────────┤
│ average response time: 116ms │
└───────────────────────────────────────────────┘
[f5-newman-build-2-2017-07-26-08-40-52] [runCollection][2 - Add Members to LTM Config] running...
newman
f5-programmability-class-2
❏ 2 - Add Members to LTM Config
↳ Step 1: Add Members to Pool
PATCH https://10.1.1.4/mgmt/tm/ltm/pool/module_3_pool [200 OK, 1.52KB, 143ms]
┌─────────────────────────┬──────────┬──────────┐
│ │ executed │ failed │
├─────────────────────────┼──────────┼──────────┤
│ iterations │ 1 │ 0 │
├─────────────────────────┼──────────┼──────────┤
│ requests │ 1 │ 0 │
├─────────────────────────┼──────────┼──────────┤
│ test-scripts │ 0 │ 0 │
├─────────────────────────┼──────────┼──────────┤
│ prerequest-scripts │ 0 │ 0 │
├─────────────────────────┼──────────┼──────────┤
│ assertions │ 0 │ 0 │
├─────────────────────────┴──────────┴──────────┤
│ total run duration: 182ms │
├───────────────────────────────────────────────┤
│ total data received: 818B (approx) │
├───────────────────────────────────────────────┤
│ average response time: 143ms │
└───────────────────────────────────────────────┘
[f5-newman-build-2-2017-07-26-08-40-52] run completed in 4s, 328.497 ms
|
On BIG-IP A examine Virtual Server module_3_vs
, the Virtual Server should be healthy and Green:
On BIG-IP A examine Pool module_3_pool
:
