Lab 2.3: Create iApp Deployments using the REST API¶

Task 1 - View Deployed Services¶

Perform the following steps to complete this task:

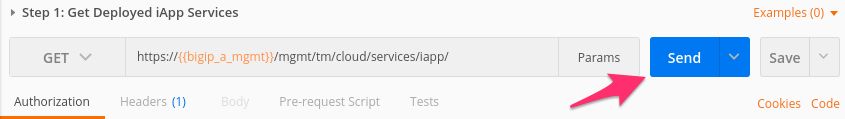

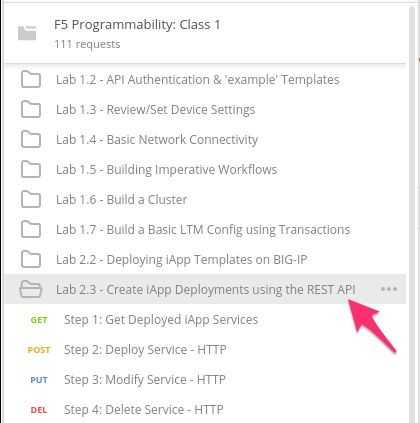

1. Send the Step 1: Get Deployed iApp Services request to view current iApp deployments on the BIG-IP device:

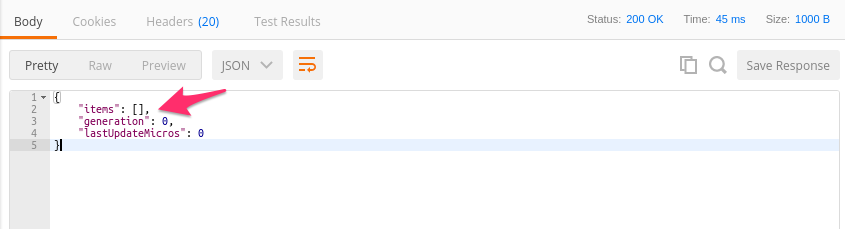

2. Review the JSON Response Body. The BIG-IP device does not have any iApp deployments. As a result the items array is empty ([]):



Task 2 - Deploy Basic HTTP Service¶

Perform the following steps to complete this task:

1. Click Step 2: Deploy Service - HTTP. Review the Request JSON Body. The JSON body of the POST contains the input for the iApp template to execute the deployment of the service.

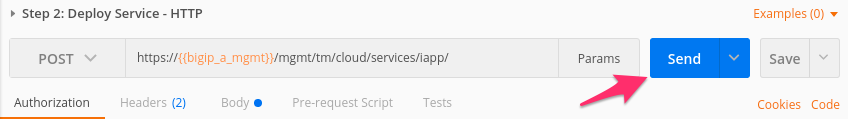

2. Click the Send button to Create a Basic HTTP Service:

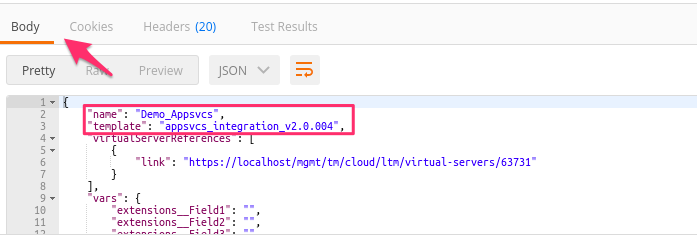

   In this task, we will deploy our first service. Review the Response JSON Body to verify if the Service has been deployed.



   Note

   We’ve just progressed into a Declarative instantiation, by defining the end state and relying on the iApp templates to handle the order of operations and configuration of specific objects. By doing this, we have drastically reduced the amount of Domain Specific Knowledge required to interact with the device. In the next module, we will combine this concept with Abstraction to further simplify the interface the service consumer has to interact with.

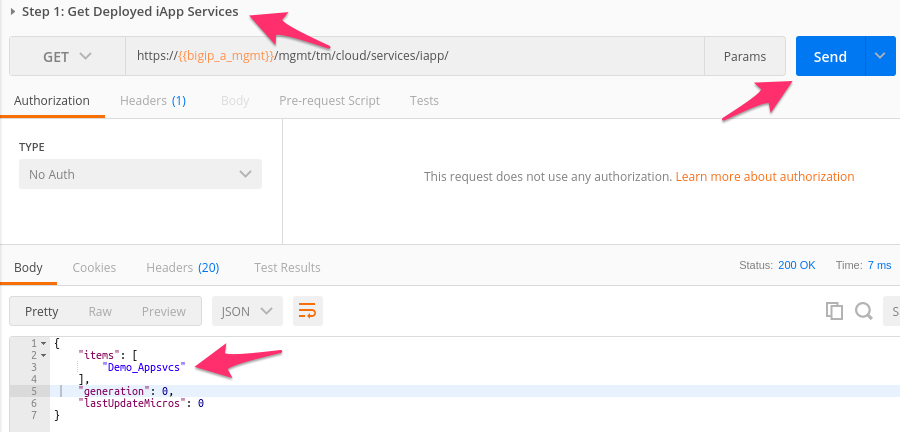

3. Now that the service has been deployed, let’s review the BIG-IP configuration. You can validate by sending the Step 1: Get Deployed iApp Services request again. Alternatively, you can login to BIG-IP A GUI to observe the service deployment via TMUI:

   • REST: Send Step 1: Get Deployed iApp Services request:



   • TMUI GUI: iApps ‣ Application Services ‣ Applications

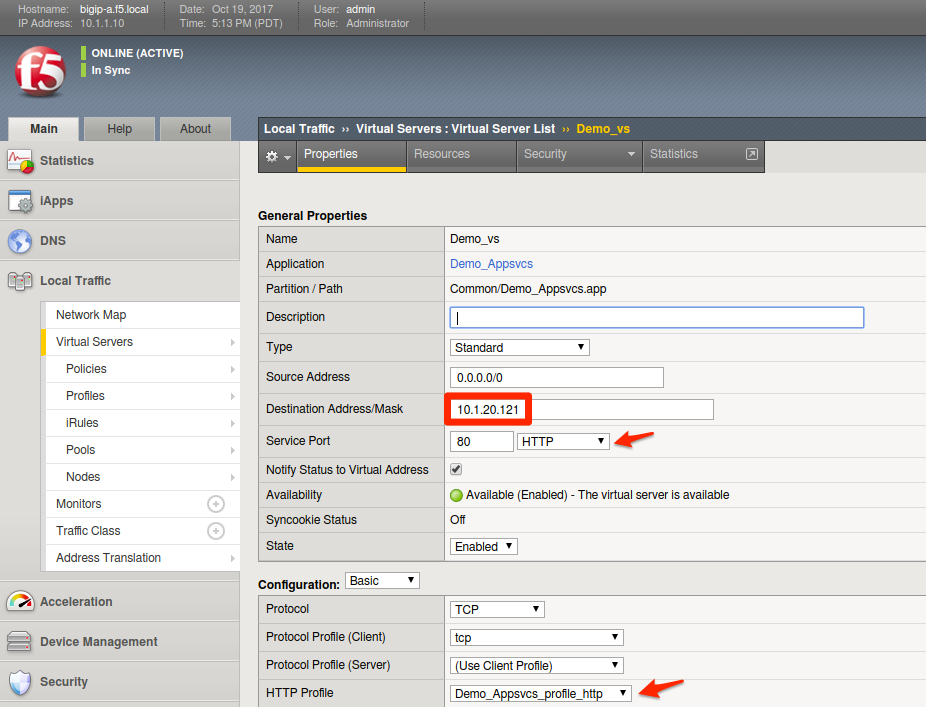

4. From the TMUI GUI, examine the Virtual Server that was created from this deployment by clicking Local Traffic ‣ Virtual Servers ‣ Virtual Server List ‣ Demo_vs. The configuration is simple, but it does contain the key components for an HTTP service (Listener, HTTP Profile, Monitor, Pool, and Pool Members):



5. The service is available and active, you can connect to the Virtual Server using Chrome web browser at http://10.1.20.121 and examine its responses:



   Note

   The colors of the text, images, and borders may vary depending on the back-end server selected during the load balancing process.

Task 3 - Modify our Deployed Service¶

In this task, we will modify the existing service. We will disable all pool members and bring the service down.

Perform the following steps to complete this task:

1. Click on Step 3: Modify Service - HTTP. Review the Request URL and JSON Body. Notice that we specified the Resource URL for our deployment. Modifying or Redeploying a service is handled by sending only the updated JSON to the specific Resource (our service) using a PUT request method. We set the state of the pool members to disabled which forces the service to go offline.

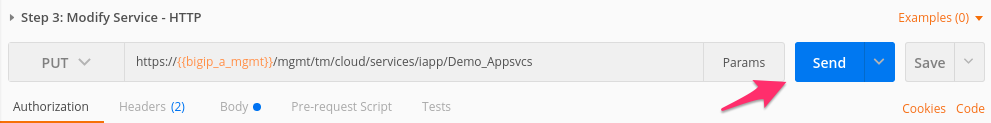

2. Click the Send button to Modify the previously deployed Basic HTTP Service:

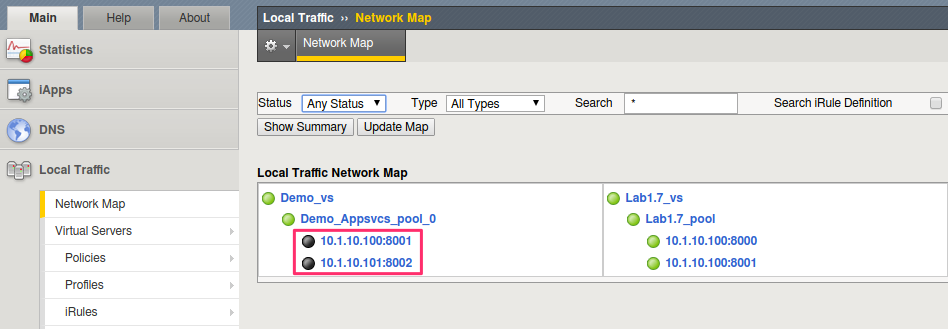

3. In the BIG-IP GUI click Local Traffic ‣ Network Map to view the new state of the Pool Members (Black indicators reflect the disabled state). The state has been updated to reflect the state we declared in our call. The Virtual Server is no longer passing traffic at http://10.1.20.121 because all the Members in the Pool have been disabled:



Task 4 - Delete our Deployed Service¶

The lifecycle of a service also includes the service removal. We will now delete an existing service.

Perform the following steps to complete this task:

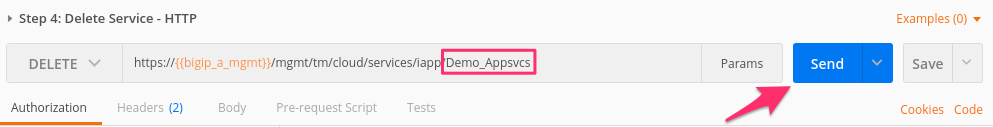

1. Send the Step 4: Delete Service - HTTP request to Delete the previously deployed Basic HTTP Service:



2. Similar to modification process, the deletion of a service is performed on the Resource URL. When we created the service, we defined a Declarative state to the iApp template which subsequently created the configuration and all of its associated objects. With a DELETE request, BIG-IP will process the removal of all objects linked to the ASO in a recursive manner. This is crucial to Application Lifecycle Management as it provides a mechanism to make sure all parts of the service are removed successfully.

   Note

   There is no JSON body to a DELETE call, as the HTTP Method is defining the action.

   Now that the service has been deleted, let’s review the BIG-IP configuration. You can review via REST by sending the Step 1: Get Deployed iApp Services request again, or you can login to the BIG-IP A GUI to observe the service deployment via TMUI:

   • REST: Send Step 1: Get Deployed iApp Services request:



   • TMUI GUI: iApps ‣ Application Services ‣ Applications



Task 5 - Deploy an HTTP Service with Custom created Profile and a referenced iRule¶

Perform the following steps to complete this task:

1. Send the Step 5: Deploy Service - HTTP w/ iRule and Custom Profiles request to deploy an HTTP Service with Custom Profiles and an iRule:



2. The App Services iApp can Create or Reference various objects. In this deployment we perform two actions:

   1. Create custom profiles on the BIG-IP device with various options specified. These profiles do not exist on the BIG-IP but are created dynamically during the deployment.

   2. Create an iRule on the BIG-IP device by using a URL Reference. The App Services iApp downloads the iRule resource from the URL and then creates a new iRule object on the system. The iRule object is then automatically linked to the Virtual Server

      Warning

      When using URL references, it is important to properly secure the repository which hosts the resource(s). The example in this lab uses a publicly readable repository, however, most environments should use a private repository with appropriate access control.

3. Review the Request JSON Body to see how the desired outcomes above were declared:

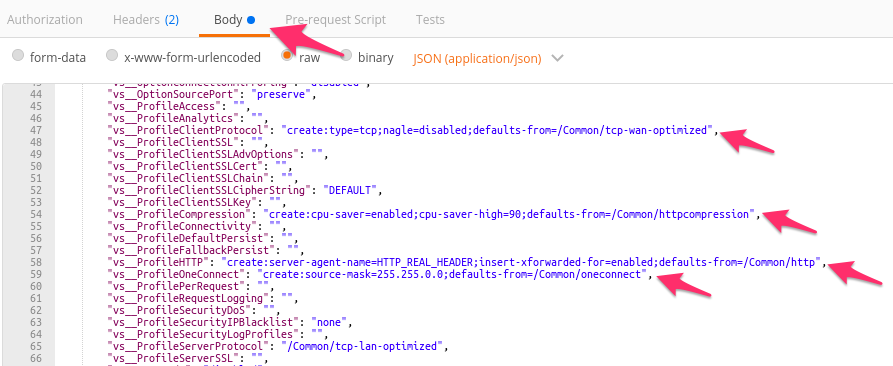

   • Custom Profiles:



   • URL Referenced iRule:

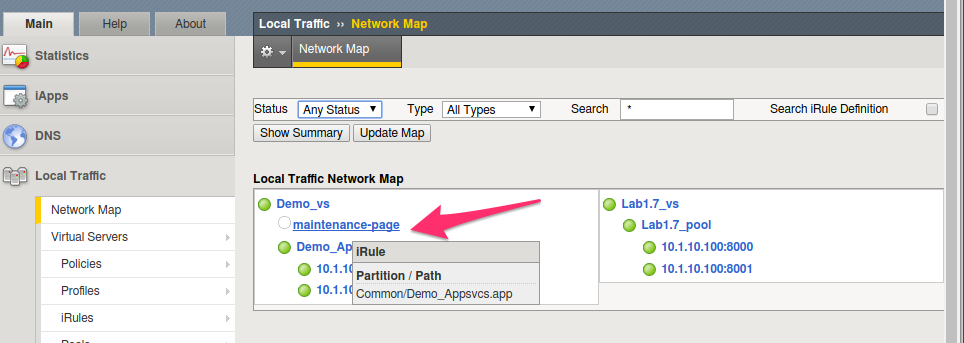

   • iRule linked to Virtual Server: (Local Traffic ‣ Network Map)



4. Open Chrome and connect to the Virtual Server at http://10.1.20.121. The iRule that was attached to the service contains an HTTP_RESPOND event, which responds with a simple Maintenance Page.



Task 6 - Deploy an HTTPS Service¶

Perform the following steps to complete this task:

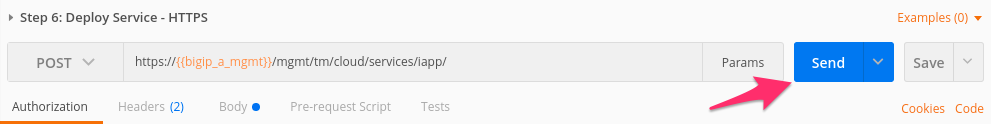

1. Send the Step 6: Deploy Service - HTTPS request to deploy an HTTPS Service using URL Resources for the SSL/TLS Key, Certificate and Certificate Bundle.



2. iApps are a Declarative interface, allowing us to modify deployment without the need to delete it (this also means we can re-name objects if we needed too). For this service we will:

   • Use the same custom profiles

   • Remove the iRule

   • Change the Listener port to 443 (HTTPS)

   • Use URL Resources to obtain the SSL/TLS Key, Certificate and Certificate Bundle

     Warning

     When using URL references, it is important to properly secure the repository which hosts the resource(s). The example in this lab uses a publicly readable repository. However, most environments should use a private repository with appropriate access control.

   • Create and apply a Client SSL Profile

3. Review the Request JSON Body to see how the desired outcomes above were declared:

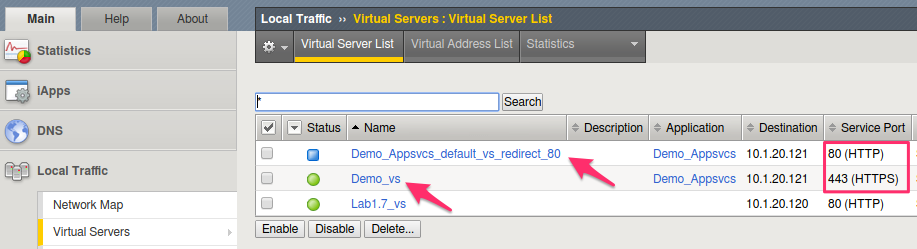

4. Review the configured Virtual Servers in the TMUI GUI. The App Services iApp created a new Virtual Server to redirect TCP/80 traffic to TCP/443 and reconfigured the Virtual Server to listen on TCP/443

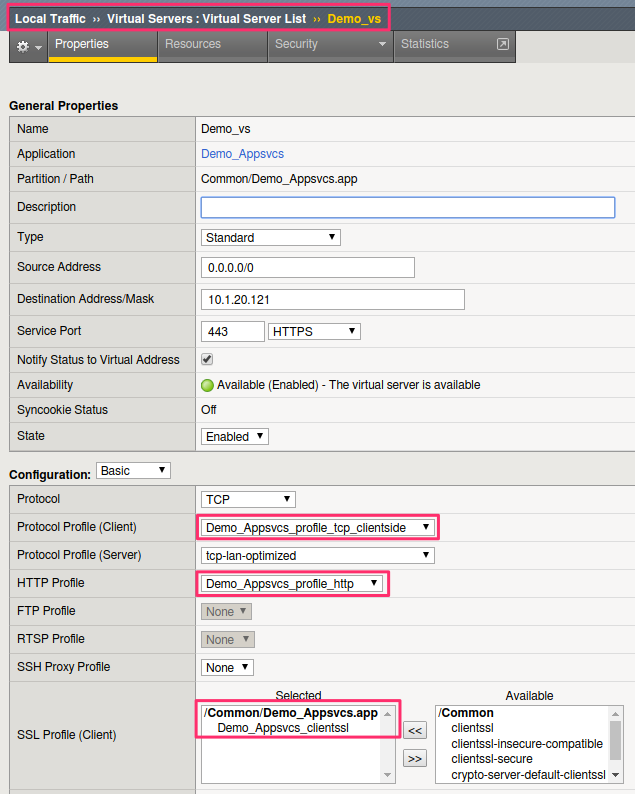

5. The configuration of the Virtual Server now uses an SSL Client profile containing our imported SSL Resources. The deployment is now providing SSL Offload for the backend compute nodes.



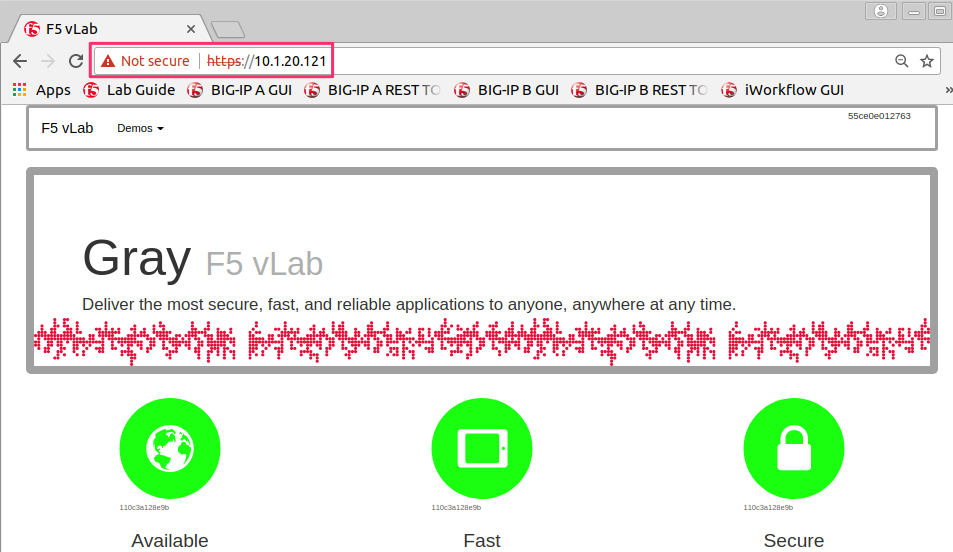

6. Open Chrome and access the service with http://10.1.20.121. It should redirect you to https://10.1.20.121.

   Note

   We are using self signed certificates in the lab so an SSL warning will be shown.

   Important

   RFC2616 (HTTP/1.1) allows for a TCP session to stay open. Had we not included “noserver Cache-Control no-cache Connection Close” in the iRule the following would have happened:

   When you would have refreshed the page, the maintenance page would still appear because of two reasons:

   1. Chrome keeps HTTP connections open in the background to improve network performance
   2. BIG-IP maintains a fully versioned configuration internally. Stateful connections, like HTTP, are then pinned to a specific version of the configuration for the lifetime of the connection.

   As a result, because Chrome has not closed the actual TCP connection, BIG-IP still processes traffic with the configuration that was present when the connection was originally created. That stale connection was still using the version of the configuration with the iRule attached to the Virtual Service resulting in the maintenance page being shown.



Task 7 - Deploy an HTTPS Service with an Web Application Firewall Policy¶

Another advantage of Service Deployment using iApp Templates is that they can deploy advanced Layer 4-7 services from various F5 modules. In this task we will deploy a service that includes a Web Application Firewall policy with the base HTTPS offload and load balancing features.

Perform the following steps to complete this task:

1. Send the Step 7: Deploy Service - HTTPS w/ WAF Policy request to deploy an HTTPS Service using URL Resources for a Web Application Firewall policy that will be used with the Application Security Manager (ASM) module.



2. This final iApp deployment will build upon our service by having the iApp load a WAF policy Resource from our repository. The App Services iApp will then create a Layer 7 Traffic Policy and apply it to the Virtual Server.

   This deployment recognizes the need for Security from the beginning of the application lifecycle. It lays the groundwork for Continuous Improvement by having the policy reside in a repository. It allows us to treat resources as code leading to an Infrastructure as Code (IaC) methodology. As the policy is updated in the repository, additional automation and orchestration can be enabled to deploy the policy into the environment. The result is an ability to rapidly build, test and iterate Layer 7 security policies and guarantee deployment into the environment.

3. Review the Request JSON Body to see how the desired outcomes above were declared:

   • Layer 7 Policy Rules:



   • Layer 7 Policy Actions:

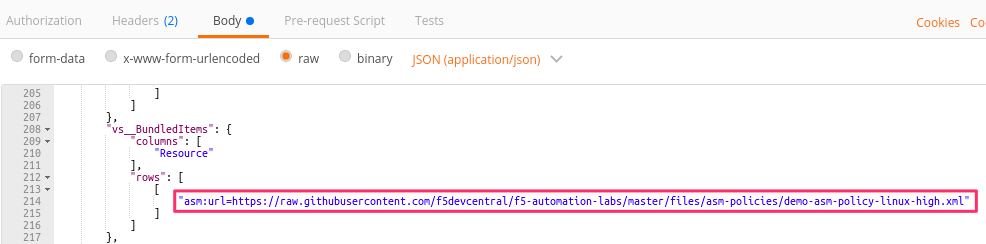

   • ASM Policy URL:



4. In the TMUI GUI, you will notice a Layer 7 policy has been applied to the Virtual Server. In Application Security, we will be able to observe that the policy is being dynamically fetched, applied, and set to Blocking mode.

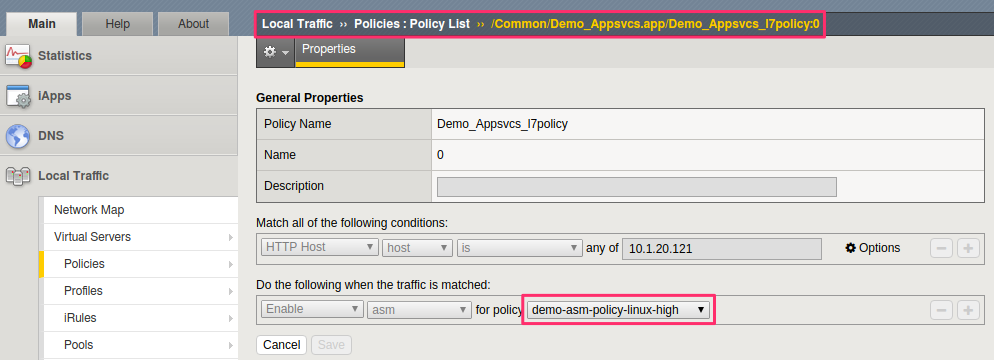

   • Layer 7 Policy:

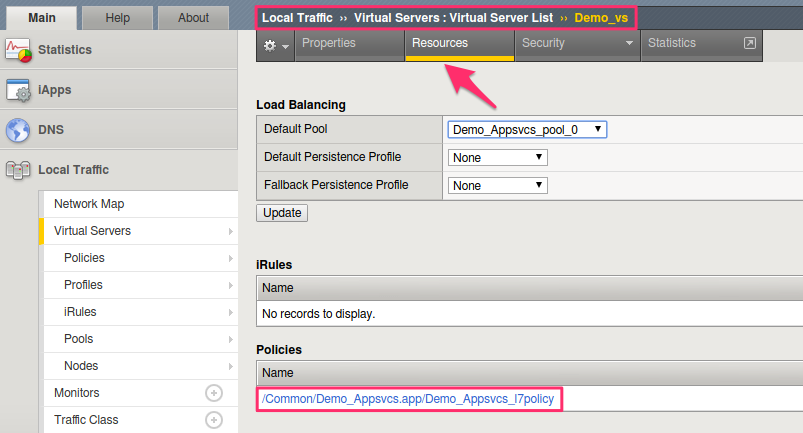

   • Layer 7 Policy attached to Virtual Server:

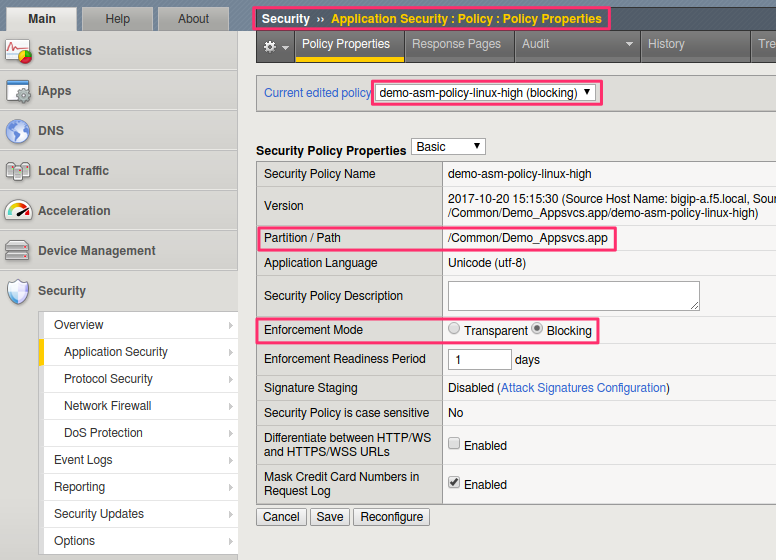

   • ASM WAF Policy:
