iApps typically come in the form of a .tmpl
file, which contains the content
needed for the BIG-IP to utilize it as a Service framework.
Different toolkits will install iApps in different ways. We’ll be using the
REST API in a raw form, so the content of the file is what
we need. As a result, we need to ensure that the content of the iApp is URL
encoded to make sure the BIG-IP reads the payload correctly. This is specific
for the iApp deployment over REST API. When using other tools like Ansible, the
whole .tmpl
file can be uploaded, removing the need for encoding.
Note
This lab work will be performed from
Lab 2.2 - Deploying iApp Templates on BIG-IP
folder in the Postman
Collection
Perform the following steps to complete this task:
Send the Step 1: Get Installed iApp Templates
request to view
iApp templates installed on the BIG-IP device:
Review the JSON response Body. The JSON payload shows iApp templates that are installed on the BIG-IP device:
Perform the following steps to complete this task:

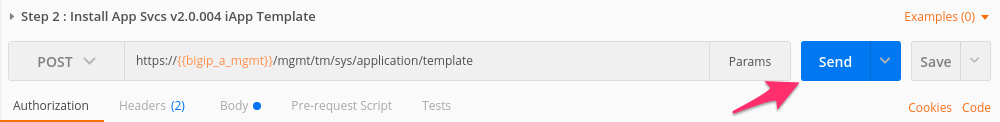

Send the Step 2: Install App Svcs v2.0.004 iApp Template
request to install the App Services iApp template:
Review the Request JSON Body, and the Response JSON Body. In this task we installed the App Services iApp Template and the BIG-IP sent back a response that the iApp was installed with its object name.
Note
The JSON body in the Request portion is automatically generated as part of the build process for the App Services iApp and the request in the Postman Collection was copied from a pre-built collection that ships with releases of the App Services iApp template.
