In the introduction to this module we discussed the importance of using Service Templates to build a Declarative Service Catalog. This lab will show to create a few examples of Service Templates (Templates). It’s important to understand that while the packaged examples used in this lab are great starting points, you should use them as a starting point for creating your own Service Catalog that meets the requirements of your environment.
We will explore the first example in depth so you can gain an understanding of how the templates are structured. For the remaining templates you can just repeat the steps used with the first example.
The templates used in this lab all have a version number appended to the name
(Example: f5-http-lb-v1.0
). It’s important that this pattern is followed
in your environment. Explicitly versioning the templates allows for migration
between template versions in a stable manner. Without versioning any changes
to the template could result in every deployment associated with the template
being modified at the same time. With versioning, the application owner or F5
administrator can choose to either migrate all deployments at the same time OR
perform the migration on a per deployment manner.
In this task we will use the Runner to quickly create our sample Service Templates. Perform the following steps to complete this task:
Click the Runner button at the top left of your Postman window.
Select
folder.Select the F5 Programmability: Class 1
environment
Click the Run Lab 3.2 - Crea… button and wait for the run to complete. Verify no errors were encountered.
Open the iWorkflow GUI in Chrome by navigating to https://10.1.1.12

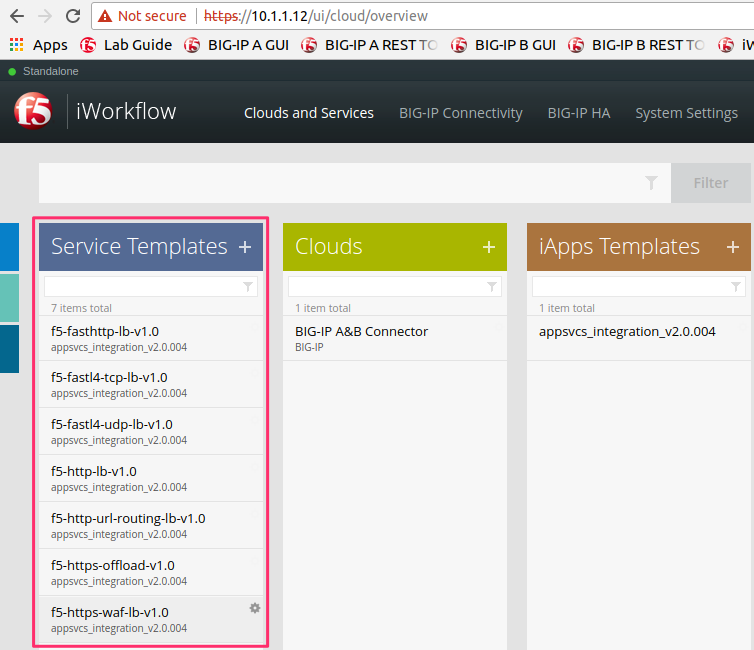

Expand the Service Templates panel and verify all the templates have been created:
Now that we’ve created our Templates let’s review one of them in depth.
Perform the following steps to complete this task:
Open the f5-http-lb-v1.0
Template by double clicking it:

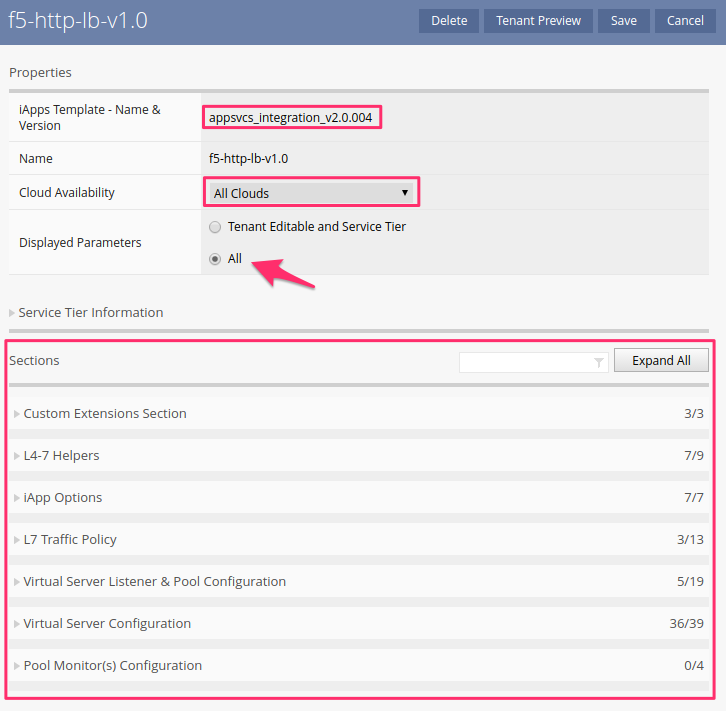

Let’s examine the Properties pane.

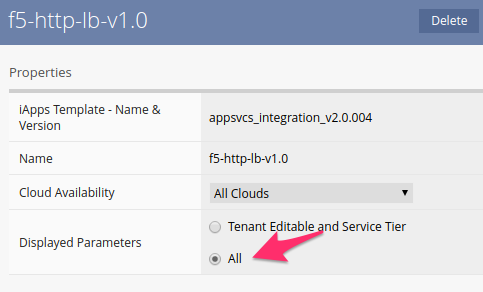

Select All in the Displayed Parameters section:
This pane shows detailed information about the Template such as:

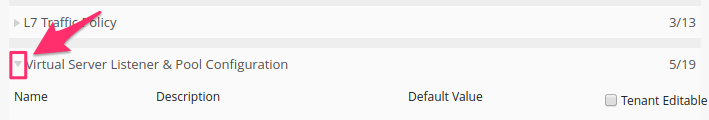

In the Sections portion of the pane, find the Virtual Server Listener & Pool Configuration section. Click the triangle to expand the section:
You can now see all the input fields associated with this section of the iApp template. These fields are defined by the iApp Template itself. In the previous lab, when we installed the App Services iApp Template, iWorkflow created a internal representation of the input fields used in the iApp template. iWorkflow then allows you to create a template that:
Tenant Editable
, therefore exposed to the
Tenant interfaceTenant Editable
the default value is sent
during a Service Deployment, however, the Tenant cannot see or modify
the valueTenant Editable
the default value is populated
for the Tenant and the Tenant may edit it during a Service DeploymentIn the case of the fields shown in the above example:
pool__DefaultPoolIndex
: A value of 0
will be sent during a
deploymentpool__MemberDefaultPort
: Nothing will be sentpool__addr
: Tenant will be allowed to populate the field with a valuepool__mask
: A value of 255.255.255.255
will be sentpool__port
: Tenant will see 80
and can change the fieldBy combining different combinations of Default Values and
Tenant Editable
fields you can create many different types of templates
to match your requirements.
Note
The App Services iApp Template has been specifically designed to integrate with iWorkflow and Automation use cases. While any iApp template that is properly versioned can be used with iWorkflow, you should consider whether the template was designed for Automation use cases or not. Many iApp templates were designed for a GUI or Wizard based interaction through the BIG-IP TMUI GUI. As a result those templates may not present a good API interface.
In addition to simple text fields, iApp templates also support table based
input. The App Services iApp uses this capability to allow input of more
complex data such as Pools, Pool Members and Layer 7 Routing Policies.
iWorkflow allows you to have granular control over how the Tenant can
interact with a table. Let’s find the pool__Pools
table and click the
triangle to expand it:
Note
To accomodate screen size this screenshot does not show all the columns in the table.
The highlighted sections in the image above correspond to the capabilities in the list below:
Finally, to assist in designing a Tenant interface, iWorkflow allows you to preview what the Tenant UI would look like for a Service Template. To view the preview, click the Tenant Preview button:

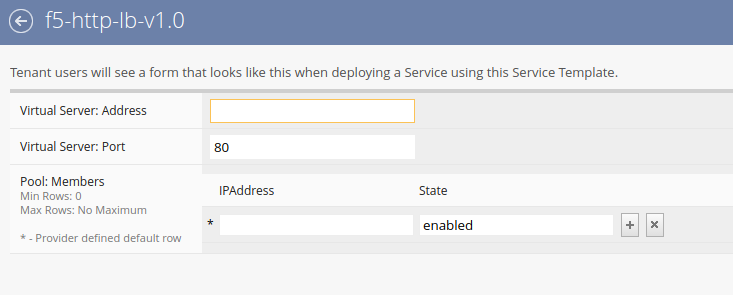

The preview window shows how the Tenant UI would present the Service Template. As you can see the interface is vastly simplified and only Tenant Editable fields are shown. Because the true deployment details are filtered from the Tenant, the Service Deployment requires much less Domain Specific Knowledge. Keep in mind that while the Tenant interface may be simple, you can still leverage advanced functionality in the Service Template.
Using the pattern in the last task explore the other Service Templates that were created earlier. A description of each Service Template is included in the table below. In all cases the Template has been configured with the appropriate Monitors, Profiles and Options for the use case.
Service Template | Description |
---|---|
f5-http-lb-v1.0 |
HTTP Load Balancing to a Single Pool |
f5-https-offload-v1.0 |
HTTPS Offload and Load Balancing to a Single Pool |
f5-fasthttp-lb-v1.0 |
Performance-enhanced HTTP Load Balancing to a Single Pool |
f5-fastl4-tcp-lb-v1.0 |
Generic L4 TCP Load Balancing to a Single Pool |
f5-fastl4-udp-lb-v1.0 |
Generic L4 UDP Load Balancing to a Single Pool |
f5-http-url-routing-lb-v1.0 |
HTTP Load Balancing with URL Based Content Routing to Multiple Pools |
f5-https-waf-lb-v1.0 |
HTTPS Offload, Web Application Firewall Protection and Load Balancing to a Single Pool |
