One of the many basic concepts related to interaction with REST API’s is how a particular consumer is authenticated to the system. BIG-IP and iWorkflow support two types of authentication: HTTP BASIC and Token-Based (TBA). It’s important to understand both of these authentication mechanisms, as consumers of the API will often make use of both types depending on the use case. This lab will demonstrate how to interact with both types of authentication.
Throughout this and other classes in the series we will make use of the Postman REST API Client. You can find more information about Postman at https://getpostman.com
In this task you will Import a Postman Collection & Environment for this lab. Perform the following steps to complete this task:
Open the Postman tool by clicking the icon of the desktop of your Linux Jumphost. The initial window may take a few moments to appear.
Note
The Postman client receives very frequent updates. If you are prompted to update the client please click the Remind me later button to skip updating the version installed in your lab environment
By default, the Postman client requires verification of SSL/TLS Certificates to a public Root Certificate Authority. However, by default, BIG-IP and many other devices use a self-signed certificate for SSL/TLS connections. To allow connections with self-signed certificates we need to modify the default settings of Postman.
Open the Postman Settings windows by clicking
:Verify your client is configured to allow self-signed certificates by

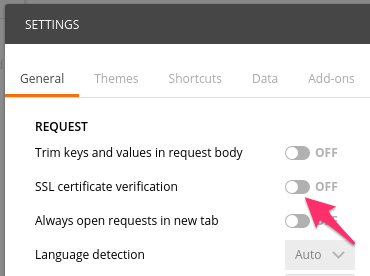

setting SSL certificate verification
to OFF
Click the X in the top right of the Settings window
A Postman Collection lets you group individual REST requests together. This Postman collection can then be shared and imported. To import a Postman Collection, click the Import button in the top left of the Postman window

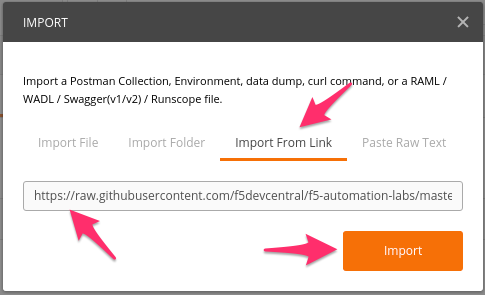

Click the Import from Link tab. Paste the following URL into the text box and click Import
https://raw.githubusercontent.com/f5devcentral/f5-automation-labs/sp/postman_collections/Class_1_Service_Provider.postman_collection.json
You should now see a collection named F5 Programmability: Class 1
in your Postman Collections sidebar. Postman automatically resizes its GUI
depending on its window size. It might be necessary to use the short
Ctrl + \
(on Windows) or click the show sidebar icon at the bottom left
corner of postman if you do not see the sidebar.
To assist in multi-step procedures we make heavy use of the Environments capability in Postman. This capability allows us to set various global variables that are then substituted into a request before it’s sent. Import the Environment file by clicking Import:
and pasting the following URL and clickinghttps://raw.githubusercontent.com/f5devcentral/f5-automation-labs/sp/postman_collections/Class_1.postman_environment.json

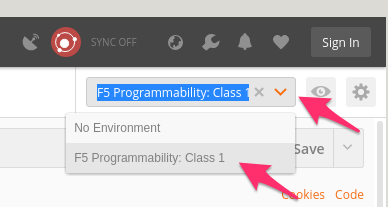

Set your environment to
F5 Programmability: Class 1
by using the menu at the top right
of your Postman window:
Important
In the pre-built lab environment a framework named
f5-postman-workflows
has been pre-installed in the environment. The
Collection we installed above REQUIRES this framework for testing and
polling functionality. If you are using a Self-Built Environment you
must install this framework into Postman by importing another
collection. Instructions to do this can be found here
In this task, we will use the Postman client to send API requests using
HTTP BASIC authentication. As its name implies this method of
authentication encodes the user credentials via the existing BASIC
authentication method provided by the HTTP protocol. The mechanism this
method uses is to insert an HTTP header named ‘Authorization’ with a
value that is built by Base 64 encoding the string
<username>:<password>
. The resulting header takes this form:
Authorization: Basic YWRtaW46YWRtaW4=
It should be noted that cracking this method of authentication is TRIVIAL; as a result API calls should always be performed using HTTPS encryption (F5 default) with a certificate signed by an authority rather than HTTP.
Perform the following steps to complete this task:

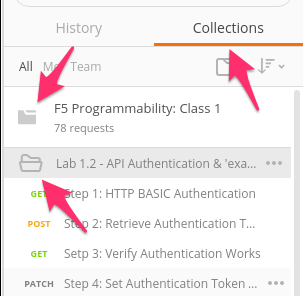

Click the Collections tab on the left side of the screen, expand
the F5 Programmability: Class 1
collection on the left side
of the screen, expand the
Lab 1.2 - API Authentication & 'example' Templates
folder:
Click the Step 1: HTTP BASIC Authentication
item. Click the
Authorization tab and select Basic Auth
as the Type. Fill in
the username and password (admin/admin
) and click the Send
button:
Click the Headers tab
and examine the HTTP header. Notice that the number of Headers in the Headers
tab changed from 1
to 2
. This is because Postman automatically created
the HTTP header and updated your request to include it.

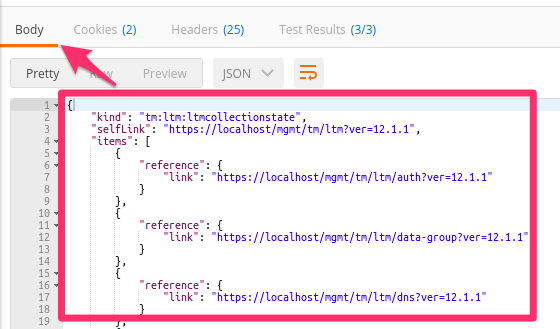

Click the Body tab, if the request succeeded you should
be presented with a listing of the /mgmt/tm/ltm
Organizing Collection:

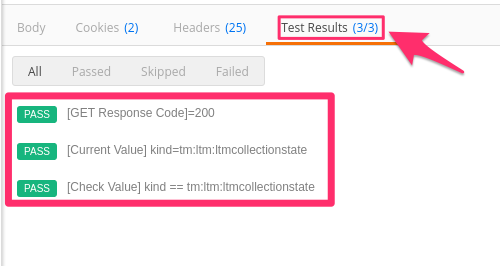

Click the Test Results tab and ensure all the tests for this request have passed:

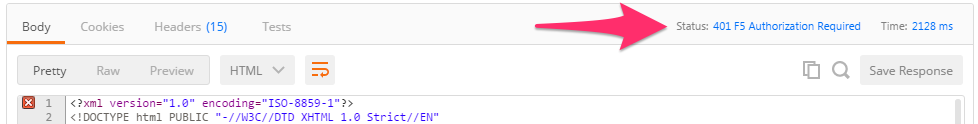

Update the credentials and specify an INCORRECT password. Send the request again and examine the response:

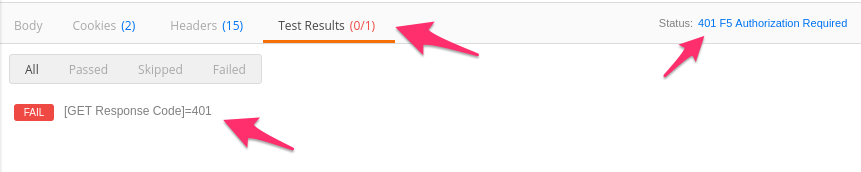

Check the Test Results tab and notice that our Unit Tests for this request are now failing (as expected):
Important
As you progress through this lab be sure to check the Test Results tab. We have included Unit Tests where applicable to help you verify the requests being sent are succeeding. If you notice a test has failed please double check your input or ask for help.
One of the disadvantages of BASIC Authentication is that credentials are sent with each and every request. This can result in a much greater attack surface being exposed unnecessarily. As a result, Token Based Authentication (TBA) is preferred in many cases. TBA only sends the credentials once, on the first request. The system then responds with a unique token for that session and the consumer then uses that token for all subsequent requests. BIG-IP and iWorkflow support token-based authentication that drops down to the underlying authentication subsystems available in TMOS. As a result, the system can be configured to support external authentication providers (Active Directory, RADIUS, TACACS, etc) and those authentication methods can flow through to the REST API. In this task we will demonstrate TBA using the local authentication database, however, authentication to external providers is fully supported.
Note
For more information about external authentication providers see the section titled About external authentication providers with iControl REST in the iControl REST API User Guide available at https://devcentral.f5.com/d/icontrolr-rest-api-user-guide-version-1300-241 (v13)
Perform the following steps to complete this task:
Click the Step 2: Retrieve Authentication Token
item in the Lab 1.2
Folder.
Notice that we send a POST
request to the /mgmt/shared/authn/login
endpoint.

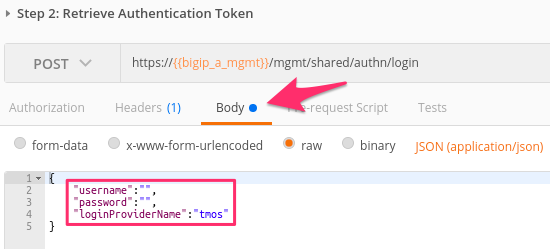

Click the Body tab and examine the JSON that we will send to BIG-IP to provide credentials and the authentication provider:
Modify the JSON Body and add the required credentials
(admin/admin
). Then click the Send button.
Examine the response status code. If authentication succeeded and
a token was generated the response will have a 200 OK
status code.
If the status code is 401
then check your credentials:
Successful:
Unsuccessful:
Once you receive a 200 OK
status code examine the Response
Body. The various attributes show the parameters assigned to the
particular token. Find the token
attribute and copy it into your
clipboard (Ctrl+c
) for use in the next step.

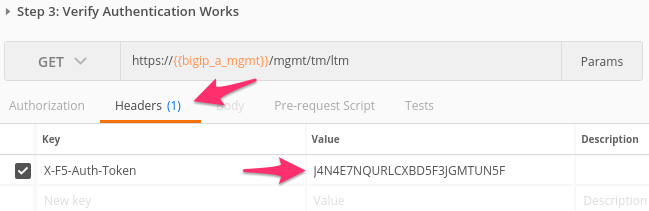

Click the Step 3: Verify Authentication Works
item in the Lab
1.2 Postman collection. Click the Headers tab and paste the
token value copied above as the VALUE for the X-F5-Auth-Token
header. This header is required to be sent on all requests when
using token-based authentication.
Click the Send button. If your request is successful you should
see a 200 OK
status and a listing of the ltm
Organizing
Collection.
We will now update your Postman environment to use this auth token for the remainder of the lab. Click the Environment menu in the top right of the Postman window and click Manage Environments:

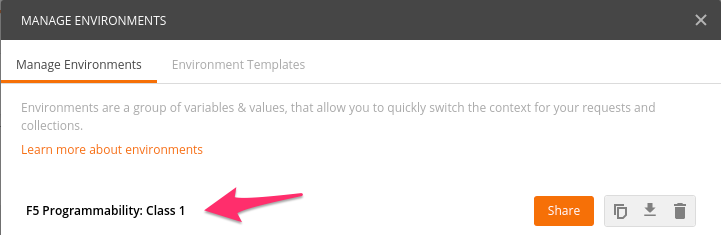

Click the F5 Programmability: Class 1
item:

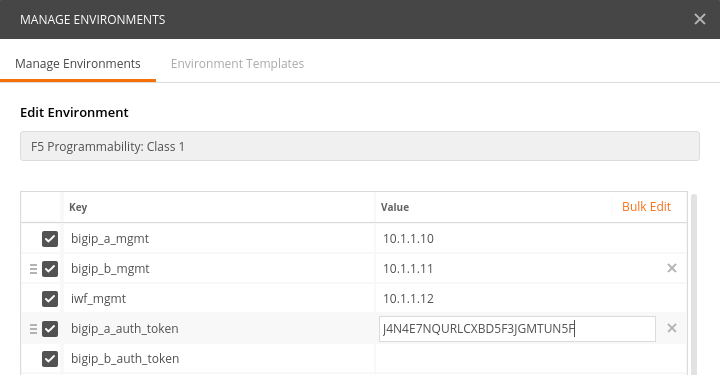

Update the value for bigip_a_auth_token
by Pasting (Ctrl+v
)
in your auth token:
Click the Update
button and then close the Manage Environments
window. Because the subsequent requests refer to the
{{bigip_a_auth_token}}
variable, you will not have to set the
token in the header of the following requests.

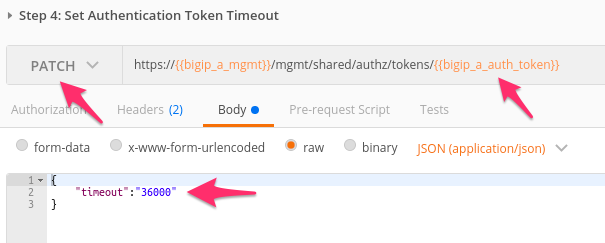

Click the Step 4: Set Authentication Token Timeout
item in the
Lab 1.2 Postman folder. This request will PATCH
your token
Resource (notice the URI) and update the timeout attribute so we
can complete the lab easily. Examine the request type and JSON
Body and then click the Send button. Verify
that the timeout has been changed to 36000
in the response:
In order to assist with REST API interactions, you can request a template
of the various attributes of a Resource type in a Collection. This
template can then be used as the body of a POST
, PUT
or PATCH
request as needed.
Perform the following steps:
Click the Step 5: Get ‘example’ of a Pool Resource
item in the Lab
1.2 Postman collection.
Examine the URI. Notice the addition of example
at the end of the
collection name:

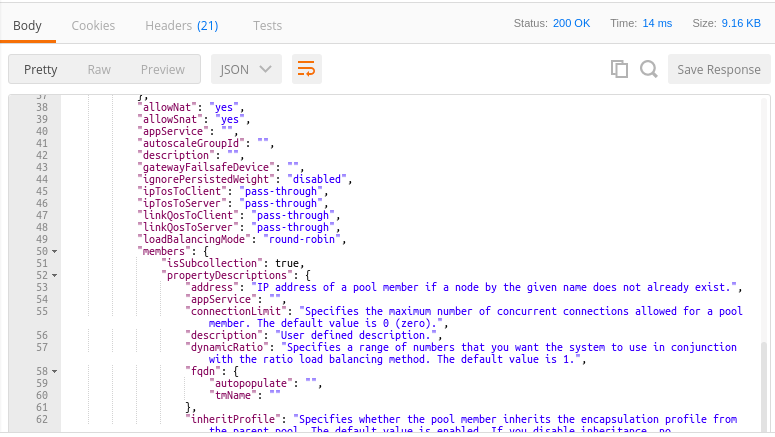

Click Send and examine the FULL response. You will see descriptions and then all the attributes for the Pool resource type. The response also shows the default values for the attributes if applicable:
